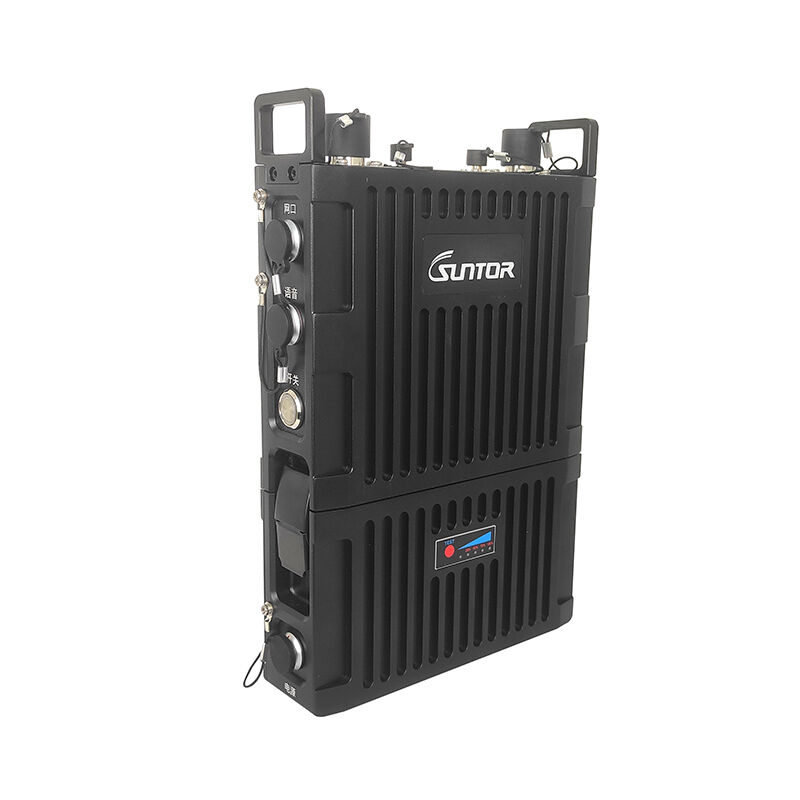

90M/bps Data Rate Multi-node Manpack Mesh Radio for Tactical Deployment

• Working Frequency: 1428-1438MHz
• Bandwidth: 2/5/10/20MHz
• Rugged Backpack with Twist-lock Battery Connector
• Power Supply: Removable Battery DC25.2V
• Transmission Rate: 90Mbps
• NLOS Distance: 300-1000M
• Size: 214×71×35.8mm (including battery)
• Interface Input: IP + WIFI (HDMI/AV customizable)

Individual soldier mesh network transmission device featuring compact size, lightweight design, and high-capacity removable batteries. Engineered for easy backpack mounting, enabling hands-free operation for tactical personnel.

Provides rapid network access with automatic multi-hop relay capability. Supports voice group calls, video backhaul, relay transmission, and multimedia communication services for individual soldiers, tactical teams, and tactical police dogs to achieve efficient collaboration.

Integrated Beidou positioning functionality with WiFi coverage support. Compatible with WiFi-enabled intelligent terminals for diverse communication applications. System utilizes co-frequency networking and multi-hop relay, supporting various network topologies including point-to-point, point-to-multipoint, chain relay, mesh network, and hybrid configurations.

• Up to 90Mbps Transmission Rate
• LOS Transmission Distance: 10-20 km
• Transparent IP Data Transmission
• Support for Two-way Intercom
• Centerless Self-organizing Mesh Network with Automatic Link Selection
• Flexible Networking Modes for Easy Operation
• Multi-hop Capability to Expand Coverage and Distance
• Long Transmission Distance
• Strong Anti-interference Performance
• Excellent Diffraction Capability
• Safe and Stable Operation
• Low System Latency: 30ms

Solider Manpack System Radio provides rapid wireless broadband communication for emergency response, anti-terrorism and anti-riot operations, covert reconnaissance, special operations, rescue and disaster relief, daily patrols, and other critical "peace and emergency" tactical missions.

• 1 × Hand Microphone
• 1 × Network Port Air Plug
• 1 × TTL Port Air Plug
• 1 × Power Supply Air Plug
• 1 × Charger
• 1 × Packing Bag
• 1 × Backpack Ad Hoc Radio Host
• 2 × RF Antenna
• 1 × WIFI Antenna
• 1 × Beidou Antenna
