IP Mesh Drone Radio MD30Pro AES Encryption for UAV Communication

Name: IP Mesh Drone Radio MD30Pro AES Encryption for UAV Communication
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: MD30Pro
Price: 5,500.00 USD
Availability: InStock

Detalhes do produto

Lugar de origem: Shenzhen

Marca: Suntor

Número do modelo: MD30Pro

Termos do pagamento & do transporte

Obtenha o melhor preço

Contacte agora

Especificações

Descrição

Especificações

Destacar:
                                                                                                                                                                                                                                                                                                                                                                                                      IP Mesh drone radio MD30Pro, UAV communication AES encryption, IP Mesh network drone radio


Faixa de frequência:	1300~1500MHz	Potência do transmissor:	1W (0,5W * 2)
Sistema de Transmissão:	COFDM	Taxa de dados:	25 Mbps a 10 MHz (pico)
Entrada de vídeo:	ETH (HDMI/SDI para opcional)	Lúpulos de rede:	1/2/3/4/10 Lúpulo

Faixa de frequência:	1300~1500MHz
Potência do transmissor:	1W (0,5W * 2)
Sistema de Transmissão:	COFDM
Taxa de dados:	25 Mbps a 10 MHz (pico)
Entrada de vídeo:	ETH (HDMI/SDI para opcional)
Lúpulos de rede:	1/2/3/4/10 Lúpulo

Descrição

IP Mesh Drone Radio MD30Pro AES Encryption for UAV Communication

MD30Pro Drone Mesh Radio with AES Encryption & 25Mbps Data Rate

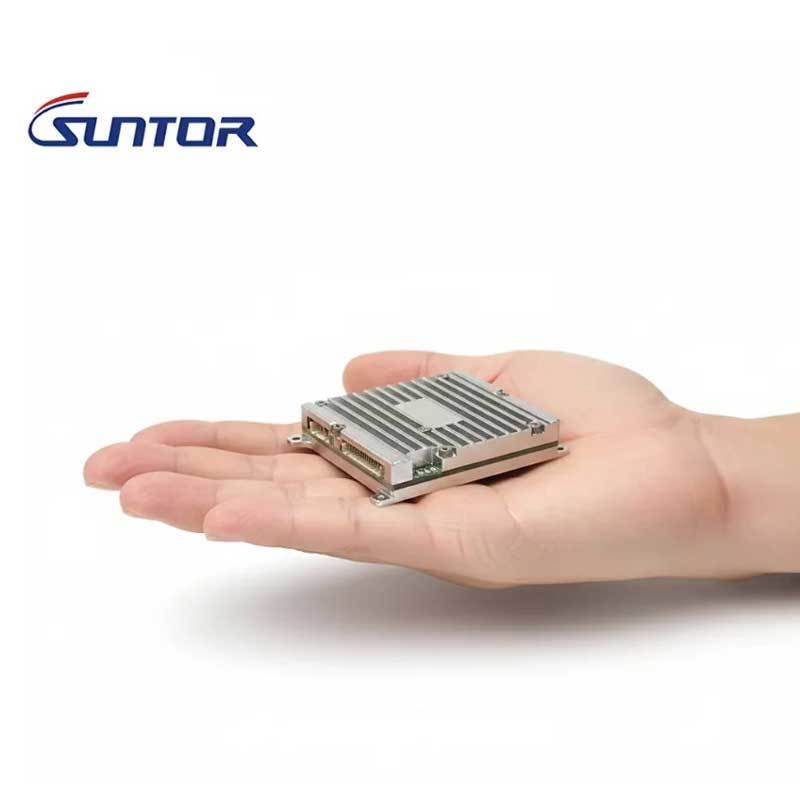

The MD30Pro Drone Mesh Radio is a compact, lightweight, and high-performance IP Mesh networking device designed for UAV communication, tactical operations, emergency response, and long-range wireless data transmission. Built with advanced COFDM modulation, AES128/256 encryption, and frequency hopping technology, the MD30Pro delivers stable broadband connectivity in complex environments.

Supporting up to 25Mbps data rate, 30KM air-to-ground transmission, and multi-node self-healing mesh networking, the MD30Pro provides reliable real-time video, telemetry, and IP data transmission for mission-critical applications.

Key Features

Long Range UAV Mesh Communication - Supports up to 30KM air-to-ground wireless transmission distance for stable communication links
High-Speed Broadband Data Transmission - Peak data rate of 25Mbps supports real-time HD video streaming and IP data communication
Advanced IP Mesh Networking - Ad-hoc mesh networking with over 64 IP Mesh nodes that automatically connect and self-organize
AES128/256 Encryption Protection - Secure wireless communication for sensitive video and data transmission
FHSS Frequency Hopping Technology - IFS/FHSS frequency hopping improves anti-interference capability and reliability
Compact and Lightweight Design - Weighing less than 50g, optimized for UAV payload integration

Technical Specifications

Specification	Details
Product Model	MD30Pro
Transmission Technology	COFDM
Networking Type	IP Mesh / Ad-Hoc Network
Frequency Range	1350~1450MHz (Customizable)
Data Rate	Up to 25Mbps
RF Power	0.5W * 2
Transmission Distance	Up to 30KM Air-to-Ground
Encryption	AES128 / AES256
Modulation	BPSK/QPSK/16QAM/64QAM
Network Nodes	More Than 64 Nodes
Networking Hops	Up to 10 Hops
Startup Time	5 Seconds
Power Consumption	≤10W Peak
Voltage Input	DC 8~28V
Dimensions	≤66 * 48 * 11.5mm
Weight	≤50g
Operating Temperature	-40°C ~ +55°C

Applications

UAV Video Transmission
Emergency Rescue Communication
Tactical Surveillance Systems
Public Safety Operations
Border Security
Firefighting Communication
Industrial Inspection Drones
Smart City Wireless Networking
Tactical and Defense Communication
Unmanned Ground Vehicle (UGV) Communication

Why Choose MD30Pro UAV Mesh Radio?

The MD30Pro combines long-range transmission, secure mesh networking, and high-speed broadband communication in an ultra-compact form factor. Its advanced self-healing IP Mesh architecture ensures stable communication even in dynamic and infrastructure-less environments. Whether deployed for emergency response, drone video transmission, or tactical communication, the MD30Pro provides reliable and secure wireless connectivity for professional mission-critical applications.
